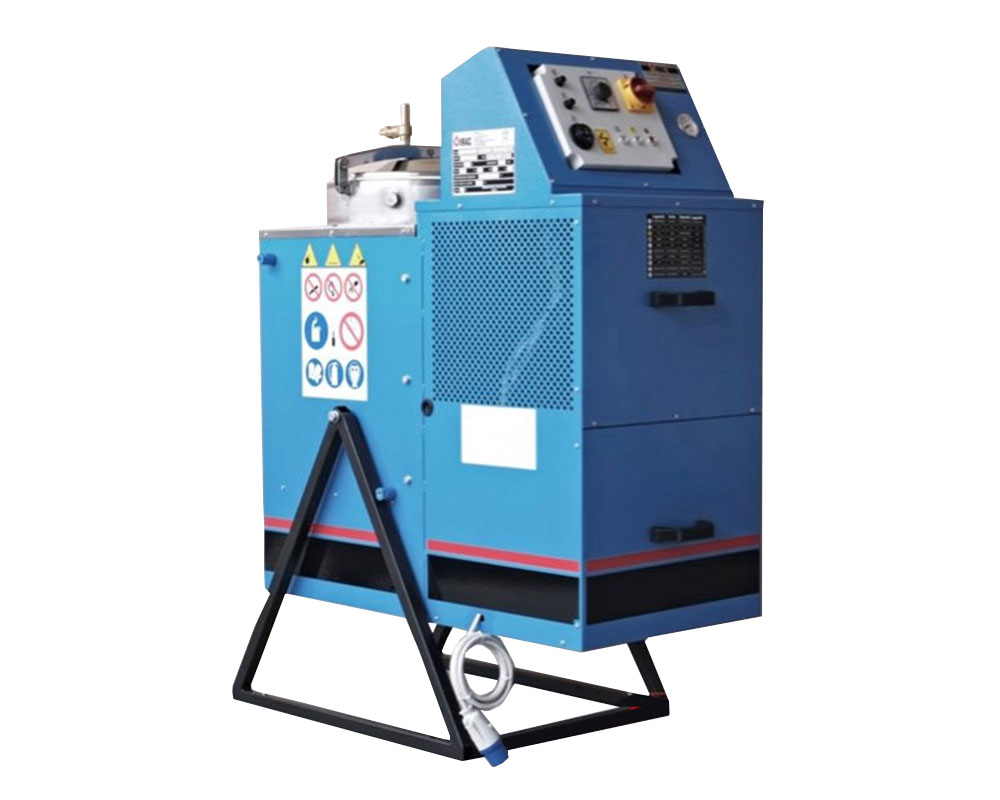

Solvent Recovery System

  • Solvent Recovery System

    Features

    • Distillation process
    • Used solvents restored to original nature
    • International Safety Regulations
    • Models available for various capacities
    Enquire for this product Download Brochure
  • Description:

    Solvents, which are used for the cleaning of spray guns & tools, are very expensive. These solvents can be effectively recycled to reduce the production costs and avoid major disposal costs by using Solvent Recycling machine.

    The solvent recycling unit makes it possible to restore & reuse the solvents for an almost endless number of times, for the cleaning application. By means of a simple distillation process the original nature of the used solvents is restored by separating from the polluting substances such as paints, resins, inks, oils, greases, etc. The regenerated solvents are then collected outside the solvent recycling system and forwarded to their next application. The polluting substances remain, as distillation residues, in a heat resistant plastic bag and depending on their composition, will be sent as inert materials, in maximum concentration condition, to special companies for further treatments.

    Models Available

    BATCH TYPE: ALPHA 15, ALPHA 20, ALPHA 30, ALPHA 50, ALPHA 70, ALPHA 120, ALPHA 200

    AUTOMATIC: MAV200, MAV335, MAV500

    Technical Information:
    ALPHA 15 ALPHA 20 ALPHA 30 ALPHA 50 ALPHA 70 ALPHA 120 ALPHA 200
    Effective capacity of the tank recommended 15 lt.
    3.96 USGal
    20 lt.
    4.75 USGal
    30 lt.
    8 USGal
    50 lt.
    13 USGal
    70 lt.
    18.5 USGal
    120 lt.
    32 USGal
    200 lt.
    53 USGal
    Hourly approximate production treating solvent 3 lt/h
    0,8 USGal/h
    5 lt/h
    1,3 USGal/h
    7,5 lt/h
    2 USGal/h
    12,5 lt/h
    3,3 USGal/h
    17,5 lt/h
    4,6 USGal/h
    30 lt/h
    8 USGal/h
    50 lt/h
    13,2 USGal/h
    Medium cycle in time for solvents h 4,5 h 4,5 h 4,5 h 4,5 h 4,5 h 4,5 h 4,5
    Medium cycle in time for water h 10-12 h 10-12 h 10-12 h 10-12 h 10-12 h 10-12 h 10-12
    Installed Heating power 1,6 Kw 2 Kw 3 Kw 3 Kw 4 Kw 12 Kw 12 Kw
    Maximum operating temperature 180°C
    356 °F
    180°C
    356 °F
    180°C
    356 °F
    180°C
    356 °F
    180°C
    356 °F
    180°C
    356 °F
    180°C
    356 °F
    Tension/Frequency V/Hz 230/50-60 V/Hz 230/50-60 V/Hz 230/50-60 V/Hz 230/50-60 V/Hz 230/50-60 V/Hz 400/50-60 V/Hz 400/50-60
    Protection IP 56-65 IP 56-65 IP 56-65 IP 56-65 IP 56-65 IP 56-65 IP 56-65
    Cooling System Air/
    Air + water (option)
    Air/
    Air + water (option)
    Air/
    Air + water (option)
    Air/
    Air + water (option)
    Air/
    Air + water (option)
    Air/
    Air + water (option)
    Air/
    Air + water (option)
    Material of the cooling condenser Copper/ Stainless Steel Copper/ Stainless Steel Copper/ Stainless Steel Copper/ Stainless Steel Copper/ Stainless Steel Copper/ Stainless Steel Copper/ Stainless Steel
    Overall dimensions cm. 80x50,5x115 89x55,5x123 89x55,5x123 102x64x136 102x64x136 158x106x168 158x106x168
    Weigh in kgs. Zone1= 133
    Zone2= 125
    Zone1= 136
    Zone2= 128
    Zone1= 143
    Zone2= 135
    Zone1= 216
    Zone2= 198
    Zone1= 230
    Zone2= 215
    Zone1= 345
    Zone2= 310
    Zone1= 360
    Zone2= 325
